THE NEEDLEBAR
Online Manuals Section
FOR USING THE
FLAT TENSION, VIBRATING SHUTTLE
NEW HOME
SERIES A
SEWING MACHINE
|
List
of Parts of the Vibrating Shuttle, New Home, Series A
|
|||
| A101 | Arm | A188 | Shuttle Basket Spring |
| A102 | Arm Screw | A189 | Shuttle Basket Spring Rivet |
| A103 | Arm Pin | A190 | Shuttle Basket Spring Heel |
| A104 | Arm Cap | A191 | Shuttle Basket Spring Heel Rivet |
| A105 | Arm Cap Screw | A192 | Shuttle Basket Screw |
| A106 | Bed Cap Screw | A193 | Shuttle Basket Washer |
| A107 | Hand Wheel | A194 | Shuttle Carrier |
| A108 | Hand Wheel Flange | A195 | Shuttle Carrier Stud |
| A109 | Hand Wheel Flange Screw | A196 | Shuttle Carrier Cone |
| A110 | Hand Wheel Flange Pin | A197 | Shuttle Carrier Cone Pin |
| A111 | Hand Wheel Collar | A198 | Shuttle Carrier Stud Set Screw |
| A112 | Hand Wheel Collar Screw | A199 | Shuttle Carrier Link Stud |
| A113 | Hand Wheel Key | A200 | Shuttle Slide (front) |
| A114 | Hand Wheel Key Spring | A201 | Shuttle Slide (back) |
| A115 | Hand Wheel Key Spring Screw | A202 | Spool Spindle |
| A116 | Eyelet Spring | A203 | Bobbin Winder Frame |
| A117 | Eyelet Spring Screw | A204 | Bobbin Winder Wire Thread Guide |
| A118 | Face | A205 | Bobbin Winder Screw |
| A119 | Face Screw | A206 | Bobbin Winder Pulley |
| A120 | Face Adjustable Screw | A207 | Bobbin Winder Pulley Arbor |
| A121 | Face Staple | A208 | Bobbin Winder Center |
| A122 | Feed Cam | A209 | Bobbin Winder Center Nut |
| A123 | Feed Cam Screw | A210 | Bobbin Winder Spring |
| A124 | Feed Cam Pin | A211 | Thread Guide |
| A125 | Feed Lever | A212 | Thread Guide Screw |
| A126 | Feed Lever Cap | A213 | Thread Guide Spring |
| A127 | Feed Lever Cap Screw | A214 | Thread Guide Cam |
| A128 | Feed Bar | A215 | Thread Guide Cam Screw |
| A129 | Feed Bar Spring | A216 | Worm Gear |
| A130 | Feed Bar Spring Washer | A217 | Worm Gear Screw |
| A131 | Feed Bar Spring Washer Screw | A218 | Worm Gear Screw Washer |
| A132 | Feed Bar Pin | A219 | Worm Gear Screw Nut |
| A133 | Feed Bar Block | A219½ | Auto. Bobbin Winder complete |
| A134 | Feed Bar Block Screw | A220 | Stitch Regulator Bar |
| A135 | Gauge | A221 | Stitch Regulator Adj. Screw |
| A136 | Gauge Thumb Screw | A222 | Stitch Regulator Thumb Nut |
| A137 | Gear for Horizontal Shaft | A223 | Stitch Regulator Thumb Screw Wire |
| A138 | Gear for Upright Shaft | A224 | Stitch Regulator Index |
| A139 | Gear Screw | A225 | Stitch Regulator Index Screw |
| A140 | Gear Pin | A226 | Stitch Regulator Cap |
| A141 | Bed Hinge complete | A227 | Stitch Regulator Cap Screw |
| A142 | Bed Hinge Stud | A228 | Stitch Regulator Fulcrum Block |
| A143 | Bed Hinge Tongue | A229 | Stitch Regulator Fulcrum Block Screw |
| A144 | Bed Hinge Tongue Pin | A230 | Stitch Regulator Fulcrum Block Washer |
| A145 | Bed Hinge Stud Nut | A231 | Take-Up complete |
| A146 | Bed Hinge Washer | A232 | Take-Up Spring |
| A147 | Bed Hinge Rubber Washer | A233 | Take-Up Screw |
| A148 | Horizontal Shaft | A234 | Take-Up Lever |
| A149 | Horizontal Shaft Flange | A235 | Take-Up Link |
| A150 | Horizontal Shaft Flange Pin | A236 | Take-Up Link Rivet |
| A151 | Link | A237 | Take-Up Spring Rivet |
| A152 | Link Screw | A238 | Take-Up Spring Guide |
| A153 | Link Pin Stud | A239 | Tension Spring (upper) |
| A154 | Link Pin Washer | A240 | Tension Spring Cap |
| A155 | Link Pin Washer Pin | A241 | Tension Spring Pin |
| A156 | Needle Bar | A242 | Tension Releaser |
| A157 | Needle Bar complete | A243 | Tension Thumb Screw |
| A158 | Needle Bar Cam | A244 | Throat Plate (fine or coarse) |
| A159 | Needle Bar Cam Rivet | A245 | Throat Plate Screw |
| A160 | Needle Bar Stud for Take-up Link | A246 | Thread Cutter |
| A161 | Needle Bar Clamp | A247 | Upright Shaft |
| A162 | Needle Bar Clamp Screw | A248 | Upright Shaft Collar |
| A163 | Needle Bar Stop Pin | A249 | Upright Shaft Collar Pin |
| A164 | Needle Bar Bar Oil Cup | A250 | Oil Can |
| A165 | Oil Tube for Face | A251 | Foot Hemmer |
| A166 | Presser Bar | A252 | Quilter |
| A167 | Presser Bar Spring | A253 | Quilter Screw |
| A168 | Presser Bar Spring Washer | A254 | Key |
| A169 | Presser Bar Adj. Screw | A256 | Bed Lock Catch |
| A170 | Presser Bar Spline | A257 | Bed Lock Catch Screw |
| A171 | Presser Bar Spline Screw | A258 | Bed Lock Catch Spring |
| A172 | Presser Bar Spline Adj. Screw | A259 | Bed Lock Catch Push Button |
| A173 | Presser Foot | A260 | Bed Lock Catch Plate |
| A174 | Foot Holder | A261 | Bed Lock Catch Plate Screw |
| A175 | Foot Holder complete with Foot | A262 | Shuttle Ejector Lever |
| A176 | Foot Holder Shank | A263 | Shuttle Ejector Lever Screw |
| A177 | Foot Holder Screw | A265 | Shuttle Ejector Lever Spring |
| A178 | Foot Holder Nut | A266 | Shuttle Ejector Push Button |
| A179 | Presser Foot Lifter | A267 | Shipping Screw |
| A180 | Presser Foot Lifter Screw | A268 | Shipping Screw Bushing |
| A181 | Horiz't'l Shaft Flange Stud | Shipping Screw Bushing Nut | |
| A182 | Needle Bar Cam Roll | ||
| A183 | Shuttle complete | ||
| A184 | Shuttle Bobbin | ||
| A185 | Shuttle Tension Spring | ||
| A186 | Shuttle Tension Spring Screw | ||
| A187 | Shuttle Basket complete | ||
|
ORDER
BY LETTER AND NUMBERS FROM THIS LIST
|
|||

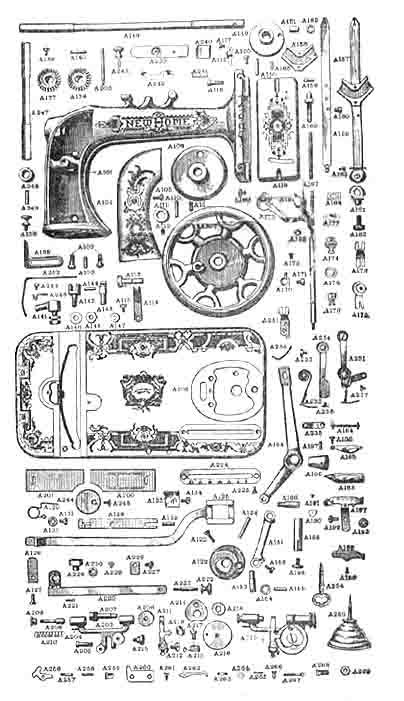

ILLUSTRATED PARTS
OF THE
FLAT TENSION
VIBRATING SHUTTLE
NEW HOME, Series A, SEWING
MACHINE
Order by the Letter and Numbers from this List

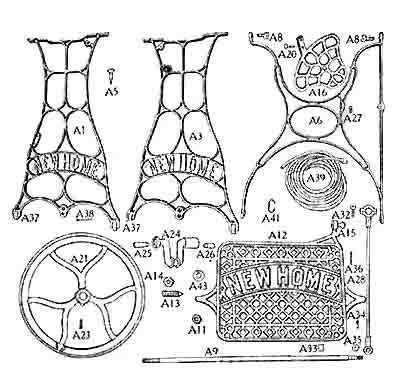

A1 Right Leg, box top; A2 Right Leg, drop-head, not shown; A3 Left Leg, box top; A4 Left Leg, drop-head, not shown, A5 Leg Screw; A6 Brace, drop-head, not shown;

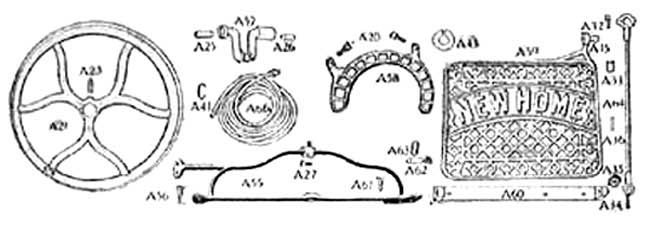

Parts of Series A -- New Home Cabinet A108
A21 Wheel; A23 Wheel Set Screw; A55 Wheel Hanger;
