Singer Hemstitcher
and Picot Edger

Part No. 121387

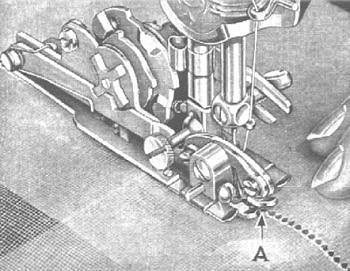

Singer Hemstitcher and Picot Edger Attachment

To Install the Throatplates

To Attach Special Throat plate to Machines 15, 66, 99 and 101.

Have the needle bar at its highest point, then remove the presser foot, thumb screw and throat plate from machine. Attach special throat plate to machine, inserting stud (B) in one screw hole and using one of the regular throat plate screws in the other screw hole fasten the special throat plate into position.

Singer Hemstitcher and Picot Edger Attachment

Hemstitcher Throat Plate for the Model 201 Sewing Machine

To Attach Special Throat Plate (Part No. 121391) to Models 127 and 128

Have the needle bar at its highest point, then remove the presser foot, thumb screw and throat plate from machine. Attach special throat plate to machine by inserting the longer screw (Part No. 202J) in the screw hole, being sure that the needle clears the edge of the needle hole, as shown, then tighten the screw.
Singer Hemstitcher and Picot Edger Attachment

To Attach the Special Throat Plate (Part No. 121392) to the Model 221-1.

Have the needle bar at its highest point (see below), then remove the presser foot, thumb screw and throat plate from machine. See that the bobbin case base position finger (E) is at top and in line with needle. Attach special throat plate to machine, inserting stud (B) in one screw hole and being sure that bobbin case base position finger (E) enters nothc (C) in bobbin case base position plate, as shown, then fasten throat plate in position, using one of the regular throat plate screws (D) in the other screw hole.

Singer Hemstitcher and Picot Edger Attachment

To Install the Hemstitcher

Hold the hemstitcher and move the operating lever [F] up and down until the piercer [G] is at its highest point, at which time the pawl [ J ] will be in one of the teeth of the ratchet which is indicated by the star ( * )

Singer hemstitcher and picot edger.

Place the hemstitcher at the rear of the presser bar and bring it into position, having the fork (F, Fig. 7) of the operating lever straddle the needle clamp of the machine.

Singer hemstitcher and picot edger.

On Machines of Class 101 -

Insert the special (longer) thumb screw (M, Fig. 7) in the upper hole (N, Fig. 8).

Singer hemstitcher and picot edger.

On all other Singer lock stitch family machines -

Insert the screw (M, Fig. 7) in the lower hole (O, Fig. 8).

When the hemstitcher is in position, tighten the screw (M, Fig. 7) firmly with a screwdriver.

Singer hemstitcher and picot edger.

Singer Hemstitcher and Picot Edger, Attachment Screw and Special Throat Plate Numbers for Singer Lock Stitch Family Machines

Machine Number

Attachment with
Thumb Screw

Attachment Thumb Screw

Special Throat Plate

Class 15 121387 51347A 121388

Class 66
(except 66-1)

121387 51347A 121389
Class 99 121387 51347A 121389
Class 101 121387 51347A 121390

Classes
127 and 128

121387 51347A

121391
(including screw 202)

Class 201 121387 51347A 121388
Class 221 121387 51347A 121392
(Color Pictures Courtesy of Sharon Reese)
